MA Lighting grandMA3 light
Showcaller AI sends playback commands to a grandMA3 light by voice or chat. It reaches any executor by page and number, beyond the 15 physical faders. Commands go over one-way OSC, so the console does not confirm them.
Overview

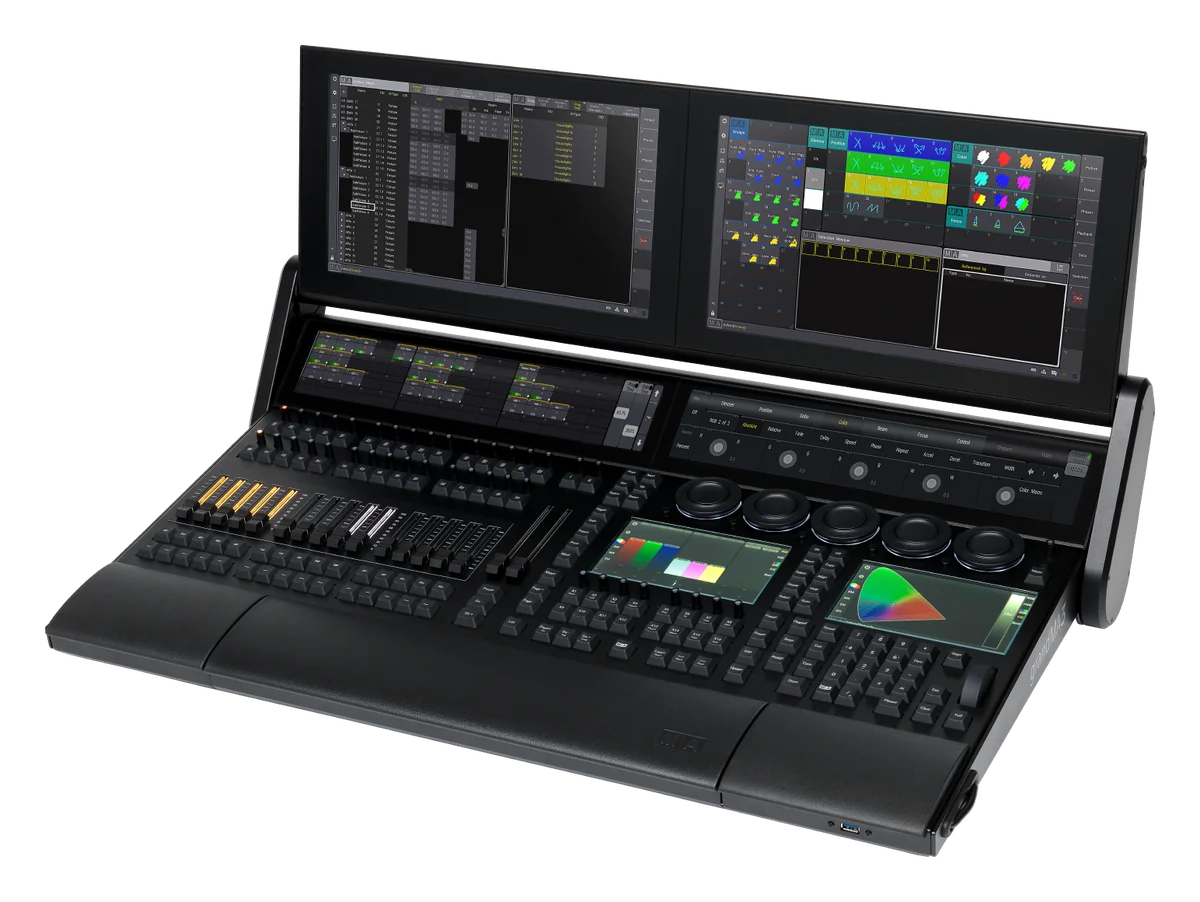

The MA Lighting grandMA3 light with Showcaller
The grandMA3 light is the work-horse of MA Lighting’s grandMA3 range. MA lists 15 motorized faders, 60 separate playbacks and 16 assignable x-keys. It also has two letterbox screens, one fewer than the full-size. MA rates it for all but the most demanding productions, with 16,384 parameters. Showcaller AI sends commands to the console through the Bridge App on your network. So the lighting desk can take cues by voice or chat. The MA Lighting grandMA3 integration page lists every function.
Beyond the 15 faders
On a grandMA3 light, a show often spreads across several executor pages. Showcaller does not need the executor on a physical fader. Instead, you name the page and the executor number. As a result, the physical faders stay free for the operator. For example, ask for Go on executor 201 on page 3, or its master fader at 60 percent. You can also switch the active page by voice. These executor and page functions come with the Pro plan. Meanwhile, sequence playback and macros come with every plan.
One-way commands on the grandMA3 light
Showcaller uses the console’s OSC input. However, the grandMA3 does not answer OSC commands. So Showcaller reports that it sent a command, not that the console ran it. That includes page changes and fader moves. In practice, the operator watches the desk, as with any one-way remote. Before the show, run a quick test cue to check the OSC line.
Sequences, macros and confirmations
In every plan, Showcaller sends Go, Go+ and Go- to a sequence. It also jumps to a cue number, pauses a sequence or turns it off. For example, ask for Go+ on sequence 1 to step to its next cue. Macros run by number, and Enterprise adds the full command line. Still, Showcaller asks first before a macro, a command-line instruction or any Off command. For full specs, see MA Lighting’s grandMA3 light page.
What you can do
Run the MA Lighting grandMA3 light by voice or chat
All 60 playbacks by name
Send Go or Off to any executor by page and number. Or set its master fader from 0 to 100 percent. Pro.
Page switching
Switch the active executor page by voice or chat. The console does not confirm the change. Pro.
Cue playback in every plan
Send Go, Go+ or Go- to a sequence, jump to a cue, pause a sequence or turn it off. Starter.
Asks before risky commands
Macros, command-line instructions and Off commands wait for your confirmation. Starter and Enterprise.
Specifications
MA Lighting grandMA3 light at a glance
Control
- Parameters
- 16,384 HTP/LTP (4,096 in grandMA2 mode); up to 250,000 per session with grandMA3 processing units
- Playback
- 15 backlit motorized 60 mm faders, 60 separate playbacks, 16 assignable x-keys, 2 motorized A/B faders (100 mm)
- Encoders
- 41 rotary RGB backlit encoders, 5 backlit dual encoders
- Screens
- 2 foldable multi-touch screens, 2 letterbox multi-touch screens, 2 multi-touch command screens; 2 external screens via DisplayPort 1.2
Connections
- DMX
- 6 x DMX512-A out, 1 x DMX512-A in (5-pin XLR)
- Network
- 3 x etherCON/RJ45
- Other I/O
- MIDI in and out, LTC timecode in, audio in, GPI (DE9), 2 x S/PDIF, 3 x USB 2.0, 3 x USB 3.0
Physical
- Power
- AC 100-240 V, 50/60 Hz, max. 300 VA; built-in UPS
- Size and weight
- 854 x 539 x 181 mm folded (34 x 22 x 8 in); 33 kg (73 lb)
Software
- Software
- Runs grandMA3 or grandMA2 software (MA Lighting)
Specifications from the manufacturer. Check the product page for the current details.
Connection
Connecting the MA Lighting grandMA3 light
- Control protocol
- OSC commands to the console's command line, sent over your show network through the Showcaller Bridge App. OSC is one-way: the console does not reply.
- What Showcaller needs
- The IP address of the grandMA3 station and the port of its OSC input line (8000 by default).
- Console setup
- In Menu > In & Out > OSC, turn on Enable Input. Then set up an OSC line for input with "Receive Command" on, and leave the OSC prefix empty.
- Console software
- grandMA3 software 2.x
- First check
- After connecting, Showcaller runs Get status. It sends a harmless test message; the console does not reply, so this shows the message was sent, not that it arrived.
Tool Functions
Everything Showcaller can do with MA Lighting grandMA3
The MA Lighting grandMA3 light uses the MA Lighting grandMA3 integration. Each group shows the plan it is included from.
FAQ
Questions about the MA Lighting grandMA3 light
Can Showcaller use executors that are not on a physical fader?
Yes. You name the page and the executor number. So the executor does not need to be on one of the 15 faders. This is part of the Pro plan.
Will Showcaller tell me if the grandMA3 light missed a command?
No. The console does not reply to OSC, so Showcaller cannot see a missed command. It reports each command as sent. Watch the desk or the stage to confirm.
Which port does Showcaller use?
The port of the OSC input line you set up on the console. MA's default is 8000.
What is different from the grandMA3 full-size?
The light has 15 motorized faders and 60 playbacks, against 30 and 120 on the full-size. It also has fewer screens and encoders. Showcaller's functions are the same on both.
Same integration
Other MA Lighting grandMA3 models

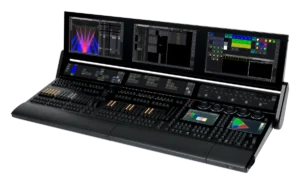

grandMA3 FullsizeModel page
