Panasonic AW-UR100

The AW-UR100 is Panasonic's IP65 outdoor 4K PTZ camera. It often sits where nobody can reach it during a show. Showcaller AI runs its presets, pan, tilt and zoom, focus, iris and streams by voice or chat.

Start free trial All Panasonic PTZ Tool Functions

Overview

The Panasonic AW-UR100 with Showcaller

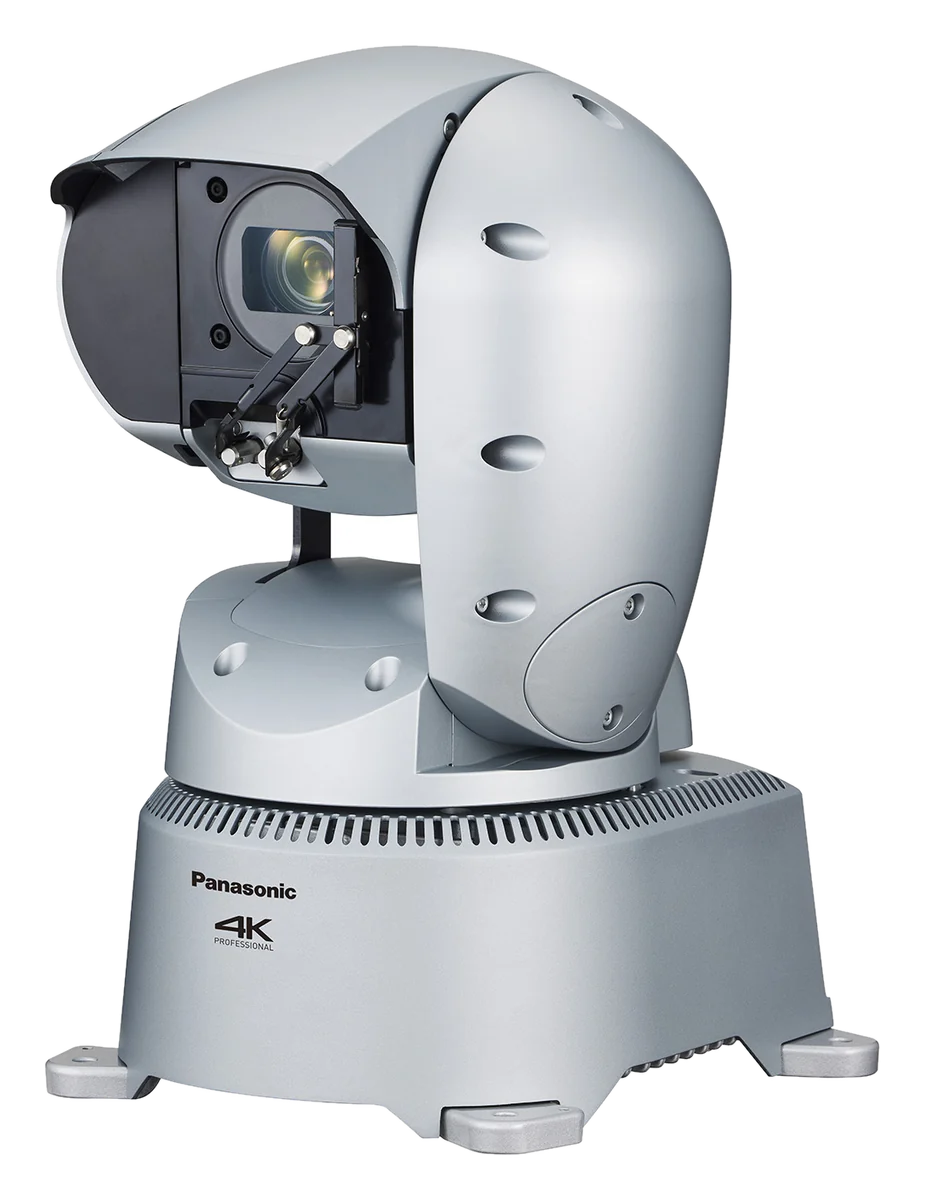

The Panasonic AW-UR100 is an outdoor 4K PTZ camera. Panasonic rates it IP65 for water and dust. It works from -15 °C to 45 °C, and a wiper, heater and defroster come as standard. It has a 1/2.5-type 4K MOS sensor and a 24x optical zoom. It outputs 12G-SDI, 3G-SDI and SFP+ fiber. Over IP, it streams H.264, H.265, SRT and NDI, in High Bandwidth or NDI|HX2. Showcaller AI runs the Panasonic AW-UR100 by voice or chat over its LAN port.

Why the Panasonic AW-UR100 suits voice control

An outdoor camera often sits on a mast, a roof or a gantry. During a show, nobody stands next to it. So the operator needs a quick way to move it and check it. For instance, they can ask which preset the camera recalled last. They can also read its pan, tilt and lens position. That makes a remote check before a stream start much faster.

How Showcaller connects

Showcaller connects through the Showcaller Bridge App, a small app on a computer on the show network. It sends Panasonic’s own IP control commands over HTTP, on port 80 by default. Then the operator asks in plain words, by voice or in chat. For example, they can say camera 2, recall preset 4 or send camera 1 home. They can also say pan left slowly and then stop. Before it stores a preset, Showcaller asks the operator to confirm. After a move or a mode change, it reads the camera’s state back where the camera reports it.

Note what Showcaller does not do on this model. The wiper, washer, heater and defroster have no Tool Function. Run those from Panasonic’s own controllers or web interface instead.

Tool Functions by plan

Starter covers camera status, presets 1 to 100, home and exact positioning, and reboot. It also covers every stream read. Pro adds pan, tilt and zoom at a chosen speed. It also adds focus and iris modes and the iris level. In addition, Pro adds stream mode, codec, NDI, bitrate, frame rate and resolution. Enterprise adds manual focus pulls, tally on or off and extra stream profiles. The Panasonic PTZ integration page lists every function. For full specs, see Panasonic’s AW-UR100 product page.

What you can do

Run the Panasonic AW-UR100 by voice or chat

Presets and exact positions
Recall or store presets 1 to 100, send the camera home or move it to an exact pan and tilt position (Starter). Storing a preset is confirmed with you first.
Check a camera you cannot reach
Read the model, firmware, pan and tilt position, lens position, tally and the last recalled preset (Starter).
Pan, tilt and zoom by voice
Pan, tilt and zoom at a chosen speed until you say stop (Pro). Switch focus and iris between auto and manual and set the iris level (Pro).
NDI and SRT streams
Read the streaming modes the camera supports, then switch mode and set bitrate, frame rate and resolution (Pro). Each stream change is confirmed first.
Wiper and heater stay with Panasonic
The wiper, washer, heater and defroster have no Tool Function. Run them from Panasonic's own tools.

Specifications

Panasonic AW-UR100 at a glance

Outdoor

Protection: IP65 waterproof and dustproof
Operating temperature: -15 °C to 45 °C (5 °F to 113 °F); preheating needed below -5 °C
Wind speed: Operates normally to 15 m/s; operation possible to 50 m/s; no damage to 60 m/s
Built in: Wiper, heater and defroster as standard; external washer control terminal

Camera

Image sensor: 1/2.5-type 4K MOS x 1
Lens: Motorized 24x optical zoom, F1.8 to F4.0 (35 mm equivalent 25.0 mm to 600.0 mm)

Video output

Outputs: SFP+ optical, 12G-SDI, 3G-SDI

IP streaming

Streaming modes: JPEG (MJPEG), H.264, H.265, NDI High Bandwidth, NDI|HX2
Streaming protocols: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI

Control & network

Control: LAN (RJ-45) for IP control; RS-422; PoE++ power supply

Pan-tilt head

Pan / tilt range: Pan ±175°, tilt -30° to 210°

Physical

Dimensions / weight: 258.0 x 367.0 x 392.0 mm (with protrusions and cable cover) / approx. 9.0 kg (19.84 lb)

From Panasonic

Specifications from the manufacturer. Check the product page for the current details.

Connection

Connecting the Panasonic AW-UR100

Control protocol: Panasonic's own IP control commands over HTTP, sent by the Showcaller Bridge App. The Bridge App runs on a computer on the same network as the camera.
Port: 80 by default, the camera's web port. Only change it if the camera uses a different port.
Camera connection: The camera's LAN (RJ-45) port for IP control, on the same network as the Bridge App computer.
What Showcaller asks for: The camera's IP address and port. It asks for the camera's username and password only if camera authentication is on.
Model family in Showcaller: AW-UR100 (model tag UR100)
Connection check: Get camera info reports the model name, firmware version, serial number and MAC address. Get stream mode then reports the current streaming mode.

Tool Functions

Everything Showcaller can do with Panasonic PTZ

The Panasonic AW-UR100 uses the Panasonic PTZ integration. Each group shows the plan it is included from.

Starter17 FunctionsPanasonic Device DiagnosticsCheck device power, model identifiers, and baseline network vitals.Pro9 FunctionsPanasonic Basic ControlsExecute Pan/Tilt/Zoom movements and access saved positional presets.Enterprise4 FunctionsPanasonic Advanced ControlsTrigger deep autofocus adjustments, reboot operations, and tally lights.Starter10 FunctionsPanasonic IP Video DiagnosticsProbe IP streaming capabilities and supported codec formats.Pro8 FunctionsPanasonic IP Video ControlToggle active IP video transmission states and streaming endpoints.Enterprise4 FunctionsPanasonic Advanced Output ProfilesAdjust encoding bitrates, framerates, and exact resolution parameters.

FAQ

Questions about the Panasonic AW-UR100

Can Showcaller run the wiper or heater on the AW-UR100?

No. The wiper, washer, heater and defroster have no Tool Function. Showcaller covers presets, pan, tilt and zoom, focus, iris, tally and stream settings.

Can Showcaller tell me where the AW-UR100 is pointing?

Yes, on every plan. It reads the pan and tilt position, the lens zoom, focus and iris, and the last recalled preset.

Can Showcaller change the AW-UR100 stream?

Yes, on the Pro plan. It switches the streaming mode, sets the NDI name and changes bitrate, frame rate or resolution. It asks you to confirm each stream change first.

Can Showcaller power the AW-UR100 on or off?

No. Showcaller has no power on or off function for Panasonic cameras. It can reboot a camera after you confirm it. Video and control drop while the camera restarts.

Which Showcaller plan do I need?

Starter has 27 Tool Functions: camera status, presets, home and exact positioning, reboot and every stream read. Pro adds 17 more for pan, tilt and zoom, focus and iris modes, the iris level and stream settings. Enterprise adds 8 more for manual focus pulls, tally and extra stream profiles. Each plan includes the Tool Functions of the plans below it.
